FSRF-36 Parts and Cap Feeder

Rotary Feeders / Elevators / Hoppers

  • FSRF-36 Parts and Cap Feeder (Rotary Feeders / Elevators / Hoppers)

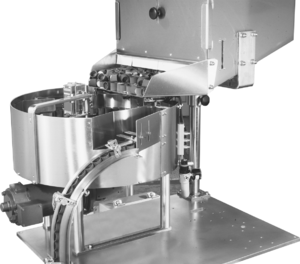

Kaps-All Packaging Systems FSRF-36 Automatic Rotary Parts and Cap Feeder

Welcome to our product page for the FSRF-36, a model of our automatic rotary parts and cap feeder line. Here, we offer a comprehensive review of the FSRF-36, its features, and its applications.

Efficient and Gentle Feeding System

The FSRF-36 stands out for its efficient and smooth operation. As a part of our feed systems 36” parts feeders, this model can orient a wide variety of cap sizes and types, along with small jars, containers, and various parts. It is specifically designed to orient parts in an open side up position, ensuring seamless operations in your packaging line.

Durable and Versatile

Constructed with high-grade stainless steel, the FSRF-36 guarantees durability, making it an ideal choice for pharmaceutical and food applications. Its patented rotary cap feeder is known for requiring a minimal amount of air to aid in orientation, making it highly energy-efficient.

The FSRF-36 has the capacity to handle caps and parts from 8mm up to 120mm in diameter. It has a wide application range and can efficiently handle standard, tall, child safety, pilfer evident, and snap caps, both metal and plastic.

User-friendly Operations

Ease of operation is one of the main features of the FSRF-36. It is fully adjustable from 13mm diameter to 120mm diameter for all flat caps, ensuring it meets your various packaging needs without any hitches. With its quiet operation, it keeps noise levels in your production line to a minimum.

Moreover, the FSRF-36 doesn't require any change parts or skilled personnel, reducing the need for costly downtime during fast changeovers. It comes with a DC motor equipped with speed controls and offers electronically controlled variable speed drive with speeds from 10 to 800 parts per minute.

Compact Size, High Speed Output

Despite its compact size, the FSRF-36 doesn't compromise on speed and efficiency. Its high speed output makes it a reliable solution for your packaging line. Additionally, the FSRF-36's feeder is not load-sensitive, eliminating the need for precise dribble feeding from the hopper.

Customizable Options

The FSRF-36 can be enhanced with optional mobile floor stands, parts counters, stainless steel supply hoppers, stainless steel chutes, and bulk parts elevators. It's easily adaptable to KAPS-ALL® cappers, and doesn't require belts or drive chains. Simple tooling is available for unusual cap stylings and parts such as tall spouts, snip tops, push-pull caps, etc.

Industry-leading Guarantee

We believe in the quality of our products, which is why we offer a two-year guarantee on the FSRF-36, the longest in the industry.

Electrical Requirements and Size

The FSRF-36 requires either 110v AC, 1Phase, 50/60 hertz or 220v AC, 1 phase, 50/60 hertz, using 2-4 CFM at 80 PSI. The crated machine weighs 400lbs with shipping measurements of 4’x4’x3’.

Experience the difference with the FSRF-36 automatic rotary parts and cap feeder – a blend of efficiency, durability, and simplicity designed for your packaging line.

Rotary Feeder Features:

  • Model FSRF-24 and Model FSRF-36.
  • No change parts required for standard caps and similar parts.
  • Handles caps and parts from 8mm up to 120mm in diameter.
  • Can orient jars and small containers.
  • Quiet and gentle (non-vibratory).
  • Stainless steel construction--ideal for pharmaceutical and food applications.
  • One model cap feeder can handle standard, tall, child safety, pilfer evident and snap caps; both metal and plastic.
  • Electronically controlled variable speed drive.
  • Speeds from 10 to 800 parts per minute.*
  • Compact size with high speed output.
  • Minimum adjustments required for orientation of unusually shaped caps or parts.
  • No skilled personnel required for fast changeovers. Eliminates costly downtime.
  • Optional mobile floor stands, parts counters, stainless steel supply hoppers, stainless steel chutes and bulk parts elevators available.
  • Guaranteed for 2 full years--the longest in the industry.
  • Easily adaptable to KAPS-ALL® cappers.
  • No belts or drive chains needed.
  • Simple tooling available for unusual cap stylings and parts such as; tall spouts, snip tops, push-pull caps, etc.
  • Precise dribble feeding from hopper not required, feeder is not load sensitive.
  • Supplies caps/parts on demand only.

Ideal For:

•Ideal for pharmaceutical and food packaging operations

Ideal For: Orienting and feeding of small to large sized caps and parts



Air-Electrical:

110v AC, 1Phase, 50/60 hertz

Or

220v AC, 1 phase, 50/60 hertz



2-4 CFM at 80 PSI





Size:

- Crated Machine Weight: 400lbs

- Shipping Measurements:  Crated 4’x4’x3’
