AC-35 Compact Cleaner

Bottle Cleaners

  • AC-35 Compact Cleaner (Bottle Cleaners)
  • AC-35 Compact Cleaner (Bottle Cleaners)

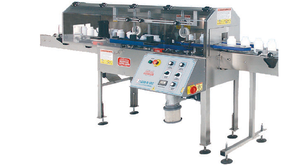

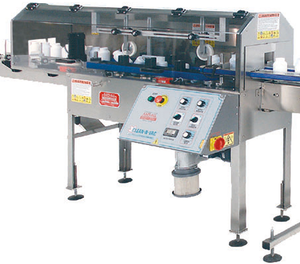

AC-35 Compact Cleaner: The Ultimate Automatic Container Cleaner

The Kaps-All Packaging Systems proudly introduces the AC-35 Compact Cleaner, a model in our CLEAN-N-VAC® range of automatic container cleaners. Designed to ensure a spotless and efficient cleaning process, the AC-35 is perfect for automatically eliminating dust, dirt, carton lint, and other foreign substances from your containers.

Reliable and Efficient Cleaning Process

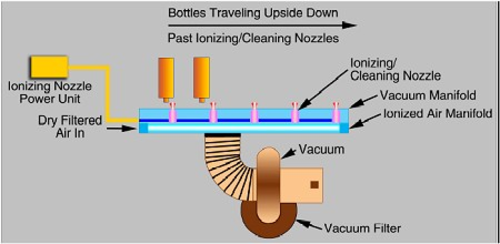

Our CLEAN-N-VAC Model AC-35 works by employing a combination of high-pressure ionized air and an effective vacuum system. The result is a completely automatic bottle cleaner that inverts the containers, blasts them with ionized air, and vacuums them over an impressive length of up to 18 inches. The AC-35 effortlessly handles containers up to 7" tall and 4" in diameter, ensuring comprehensive cleaning for a wide range of containers.

Versatility and Durability

Boasting a patent-pending design, the AC-35 requires fewer change parts, ensuring reduced downtime and increased productivity. Furthermore, it can seamlessly adjust to handle a diverse range of containers from plastic, glass, metal, to corrugated ones in different shapes, including round, square, rectangular, and oval. Constructed with a heavy-duty welded stainless steel frame, the AC-35 is built to withstand rigorous usage, promising long-lasting service.

User-friendly Controls and Safety Measures

In line with our commitment to ease of use and safety, the AC-35 model comes with electronic variable speed controls for all turning and cleaning functions. It features non-marring contact parts and can be used with an existing conveyor or a stainless steel Conveys-All Conveyor. The inclusion of self-contained electronic controls, polycarbonate safety covers, and stainless steel guards ensure user safety and wide access for effortless adjustments.

Convenient Adjustments and Safety Switches

With hand wheels and calibrated settings, the AC-35 provides a straightforward and repeatable process for changeovers. Furthermore, the model integrates interlocking safety switches on the front hinged guard to ensure the machine will not run unless the door is fully closed. This low-profile design increases safety by eliminating the need for ladders or step stools.

Specifications and Ideal Usage

The AC-35 is ideal for the efficient removal of foreign matter from smaller packaging on low, medium, and high-speed lines. With a max container height of 7" and max container diameter of 4", it is designed to cater to a wide range of packaging needs. For larger containers, consider our Model AC-65 Bottle Cleaner Inverter.

The machine requires 110v AC, 1Phase, 50/60 hertz or 220v AC, 1 phase, 50/60 hertz and utilizes 10 CFM at 80 PSI. The crated machine weight is 950lbs, and its shipping measurements are crated 8'x4'x 7'3".

Overall, the AC-35 Compact Cleaner represents the next generation of automated cleaning technology, providing an unmatched level of efficiency, versatility, and safety in one compact machine. Trust the AC-35 to keep your containers immaculate, enhancing your product quality and consumer trust.

Features:

FULLY AUTOMATIC “CLEAN-N-VAC” BOTTLE INVERTER AND CLEANER MODEL AC-35 COMPLETE WITH THE FOLLOWING FEATURES, AS PER BULLETIN # 0206:

  1. Automatic bottle cleaner, which inverts the containers, blasts them with ionized air and vacuums them over an effective length of up to 18 inches.
  2. Handles containers up to 7” tall and 4” diameter for larger container ask us about our Model AC-65 Bottle Cleaner Inverter
  3. Exclusive patent pending design eliminating numerous change parts.
  4. Fully adjustable inverting mechanism to handle a wide range of containers.
  5. Minimal changeover parts needed for a wide range of plastic, glass metal, corrugated, round, square, rectangular and oval containers etc.
  6. Heavy duty welded stainless steel construction frame.
  7. Electronic variable speed controls for all turning and cleaning functions.
  8. Non marring contact parts throughout.
  9. Can be used with existing conveyor or with a stainless steel Conveys-All Conveyor.
  10. Self contained electronic controls.
  11. Polycarbonate safety covers and stainless steel guards throughout allowing wide access for easy adjustments.
  12. Hand wheels and calibrated settings allow for ease and repeatability of changeovers.
  13. Computer designed for a quite, smooth, dependable operation.
  14. Complete with 44" intake DC variable speed conveyor and metering wheel.
  15. Left to right conveyor discharge is standard right to left is available.
  16. Interlocking safety switches on front hinged guard so that the machine will not run unless the door is fully closed.
  17. Low profile design for increased safety, no need for ladders or step stools.



  1. Feed Systems 7’6” long stainless steel frame, D.C. variable speed drive conveyor utilizing a 4 1/2” wide conveyor belt (Delrin) complete with guide rails, controls
  2. Photoptic conveyor discharge safety switch (recommended)
  3. Heavy duty Stainless steel frame (to replace the standard epoxy coated frame)
  4. Automatic rate meter to determine bottles per minute being cleaned

Specifications:



Max Container Height: 7”



Max Container Diameter 4”



Ideal For:

•Ideal for highly efficient removal of foreign matter from smaller packaging on low and medium and high speed lines



Air-Electrical:

110v AC, 1Phase, 50/60 hertz

Or

220v AC, 1 phase, 50/60 hertz



10 CFM at 80 PSI



Size:

- Crated Machine Weight: 950lbs

- Shipping Measurements:  Crated 8’x4’x 7’3”






Download plan view layout
DWG PDF
