Combination  Wrap / Panel Labeler.  Speeds Up To 40 Meters of labels per minute (up to 175bpm)*

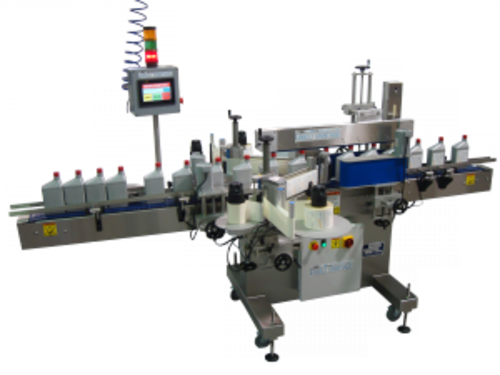

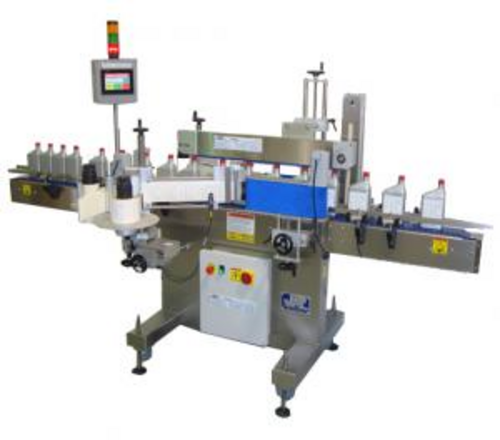

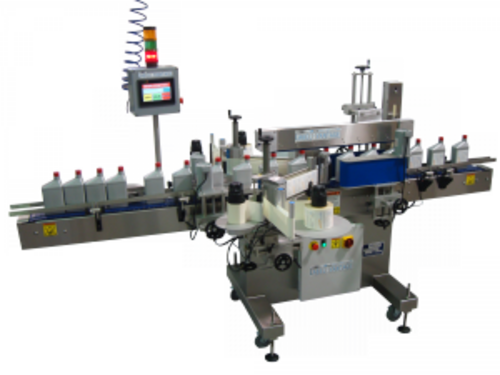

Model LC-40 is a Pressure Sensitive Combination Full & Partial Wrap & Panel Labeler for Round, Flat Sided and Oval Bottles.  Labeling Speeds of up to 40meters/ 1,500inches per minute.  The labeling applicator adjusts on 5 axes.  European design.  User friendly controls and a large color touch screen make changeovers easy and quick.



*Speeds dependant on application

  • 1.      Full and Partial wraps:

    • Straight in-line automatic labeler for plastic, metal, fiber and glass round containers.
    • Front and back label applicators for panel bottles.

    2.      European designed field proven label applicators:

    • Variable speed servo drive motor.
    • Standard label reel diameter up to 300mm/12” with 76mm/3” core diameter.
    • Can accept a web width of up to 4.5” – Larger Available.
    • Wrap station 6” x 14” allowing full wrap of most bottles.  Others available.
    • Labeling speed:  Up to 40 meters per minute/1,500 in. per minute with independently driven reel holder.
    • Proprietary full 5 axis adjustment of applicator head.
    • Unwind unit gives constant web tension.
    • Dual label press wheels for front and back straight sided bottles.

    3.      Heavy Duty Design:

    • One piece welded uni-frame (Patented Design) for 24-hour/7-Day operation.
    • Portable epoxy coated steel compact base frame with stainless steel leveling screws with floor pads.
    • Oversize stainless steel shafting with calibrated settings throughout.
    • 8 foot long synchronized variable speed conveyor with Stainless Steel infeed and discharge conveyor sections (Longer lengths and custom layouts available).



    4.      Controls:

    • Clearly laid out operating display for safe and easy use.

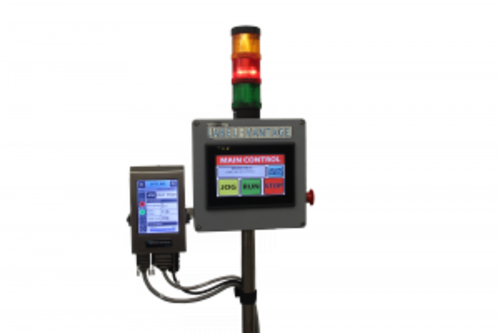

    • Color TFT touch screen control system with rotating support for front and rear operation.
    • Label counter down with operator alerts (precisely counts the number of labels dispensed by applicator).
    • Photo-electric non-contact label and bottle detectors.
    • Menu driven microprocessor control with over 250 alpha-numeric recipe capacity



  • Missing label on bottle detector with screen indicator (For luminescent labels).
  • Base frame to be all stainless steel construction.
  • Indicator stack light:  Green light labeler is on (running) red stack light, Labeler is off (not running).
  • Ethernet networking interface ready for your direct hook up.
  • Reject System to push faulty bottles off conveyor if they register as a fault such as missing label.  System includes:  Pneumatically operated push paddle to gently guide bottles off conveyor, stainless steel mounting bracket, regulator, control valve, pressure gauge with integral program on main sealer control panel.  Suitable for bottle sizes of up to one gallon (works with option #2 above).
  • Video Jet Model VJ6210 Thermal Transfer Overprinter with 32mm x 30mm print area, 300 DPI print head, 5.7” color touch screen, etc









Ideal For:

  • Multiple Shaped Container Labeling
  • High Speed Applications



Air-Electrical:

  • 110V, 1 Phase, 50/60 Hertz (Nema 12).
  • No air needed on standard machine (unless coders/rejectors, etc. are used) (Approximately 6.0 amps).



Size:

  • Crated Machine Weight: 1500lbs
  • Dimension: 9’x6’x6’8”
