LF-80 High Speed Combination Wrap / Panel Labeler

Labelers

  • LF-80 High Speed Combination  Wrap / Panel Labeler (Labelers)
  • LF-80 High Speed Combination  Wrap / Panel Labeler (Labelers)

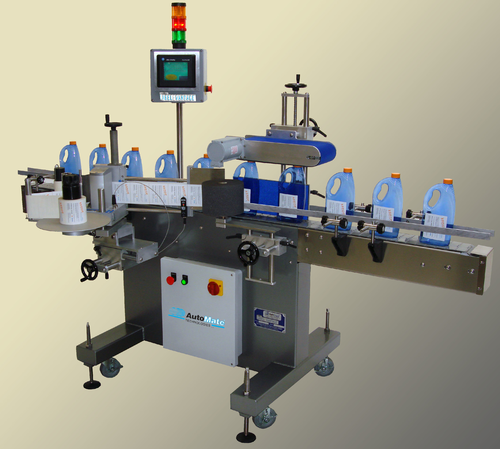

Model LF-80
Combination  Wrap / Panel Labeler.  Speeds Up To 80 Meters of labels per minute (up to 350bpm)*

LABEL-VANTAGE

Automatic Combination Wrap and Panel Product Labeling System

Model LF-80 is a Pressure Sensitive Panel Labeler for Round, Flat Sided and Oval Bottles.  Labeling Speeds of up to 80meters/ 3,00inches per minute.  The labeling applicator adjusts on 5 axes.  European design.  User friendly controls and a large color touch screen make changeovers easy and quick.

The Model LF-80 comes complete with the following standard features (See bulletin #A1008):

  1. European designed field proven label applicators:
  • Variable speed servo drive motor.
  • Standard label reel diameter up to 300mm/12” with 76mm/3” core diameter.
  • Can accept a web width of up to 4.5” – Larger Available.
  • Labeling speed:  Up to 80 meters per minute/3,000 in. per minute with independently driven reel holder.
  • Proprietary full 5 axis adjustment of applicator head.
  • Unwind unit gives constant web tension.
  • Dual label press wheels for front and back straight sided bottles.
  1. Heavy Duty Design:
  • One piece welded uni-frame (Patented Design) for 24-hour/7-Day operation.
  • Portable epoxy coated steel compact base frame with stainless steel leveling screws with floor pads.
  • Oversize stainless steel shafting with calibrated settings throughout.
  • 9’ 8” long synchronized variable speed conveyor with Stainless Steel infeed and discharge conveyor sections (Longer lengths and custom layouts available).
  1. Controls:
  • Clearly laid out operating display for safe and easy use.
  • Color TFT touch screen control system with rotating support for front and rear operation.
  • Label counter down with operator alerts (precisely counts the number of labels dispensed by applicator).

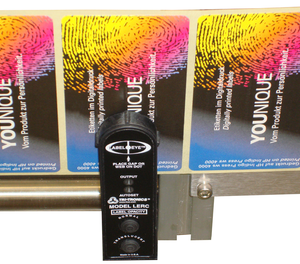

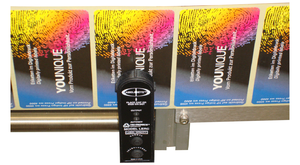

  • Photo-electric non-contact label and bottle detectors.
  • Menu driven microprocessor control with over 250 alpha-numeric recipe capacity.





Options:



Front and back Model LFB:

  • Straight in-line automatic labeler for plastic, metal, fiber and glass round containers.
  • Front and back label applicators for panel bottles.
  • Hold down belt.
  1. Missing label on bottle detector with screen indicator (For luminescent labels) (Each side)
  2. Base frame to be all stainless steel construction.
  3. Indicator stack light:  Green light labeler is on (running) red stack light, Labeler is off (not running).
  4. Yellow fault stack light to indicate when any fault occurs, in addition to screen indicators.
  5. Ethernet networking interface ready for your direct hook up.
  6. Extra SS conveyor length (Beyond the standard 9’ 8”) per foot.
  7. Reject System to push faulty bottles off conveyor if they register as a fault such as missing label.  System includes:  Pneumatically operated push paddle to gently guide bottles off conveyor, stainless steel mounting bracket, regulator, control valve, pressure gauge with integral program on main sealer control panel.  Suitable for bottle sizes of up to one gallon (works with option #2 above).
  8. Reject table: Stainless steel construction 12” x 12” square with lip around three sides, to be mounted on opposite side of conveyor to the reject paddle. Suitable for bottle sizes up to one gallon.
  9. Video Jet Model VJ6210 Thermal Transfer Overprinter with 32mm x 30mm print area, 300 DPI print head, 5.7” color touch screen, etc
  1. Bracket for above to mount to LFB-40 Labeler including integration
  2.  Message design software “Clarisoft” edition



Ideal For:

• Flat Sided and Oval Container  Labeling

High Speed Applications





Air-Electrical:

110V, 1 Phase, 50/60 Hertz (Nema 12).  No air needed on standard machine (unless coders/rejectors, etc. are used) (Approximately 6.0 amps).



Size:

- Crated Machine Weight: 1500lbs

- Dimension: 9’x6’x6’8”
