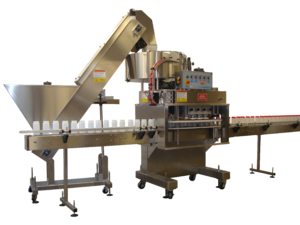

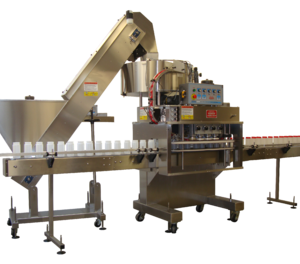

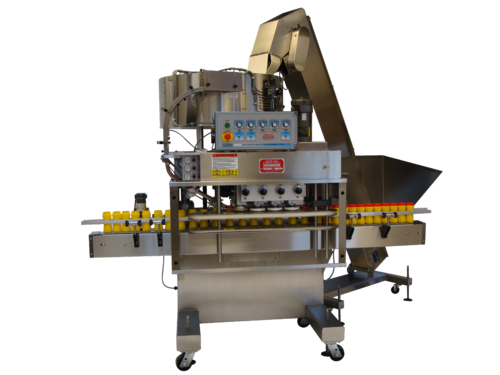

C8 PORTABLE 8 SPINDLE CAPPER

Description:

Model C8-Portable 8 Spindle Capper
Speeds Up To 400 BPM*

This fully automatic high-speed capper handles screw caps of all materials and styles from 8mm to 120mm including pilfer evident and child resistant cap closures (standard range is 13mm to 70mm). Handles metal, glass or plastic containers from low jars and vials up to 2-1/2 gallons. Easily converted to a combination capper similar to the Model G. Comes with a standard rotary cap feeder (optional escalator cap feeder available). Can be used as a cap and pump tightener. Comes standard with clutches for screw capping.

Features:

THE MODEL “C8” CAPPER COMES EQUIPPED WITH THE FOLLOWING STANDARD FEATURES AT NO CHARGE:

  1. Two full-year guarantee.
  2. Stainless steel 7’6” conveyor frame DC variable speed drive with a 4 1/2” wide Delrin chain stainless steel pins, stainless steel drive and idler shafts with reinforced nylon conveyor rail posts, stainless steel conveyor end guards and non-corrosive drive and idler conveyor top chain sprockets. Note: (Machine also can be purchased without conveyor).
  3. Stainless steel enclosure with Lexan doors on front and back enclosing spindle and gripper section down to Conveyor.
  4. No changeover parts needed for a wide range of standard cap sizes, container shapes and sizes.
  5. Stainless steel adjustable upper and lower cap chutes to handle from 13mm to 70mm standard flat CT caps.
  6. Stainless steel 3.5 cubic foot cap supply hopper (pre-feeder).
  7. Stainless steel guarding of upper spindle section.
  8. One pair of stainless steel bottle gripper belt housings with belts and drives.
  9. All stainless steel bottle gripper belt and spindle shafting.
  10. Heavy duty patented multiple disc adjustable torque clutches which will give a consistent torque and minimize wear on cap tightening discs (two pairs).
  11. All D.C. electronically controlled variable speed drives.
  12. All Nema 12 electrical components.
  13. Portable on four swivel wheels for easy maneuvering.
  14. Mounting facilities for using a second set of bottle gripper belts.
  15. One piece solid welded construction cabinet painted white epoxy for both cleanliness and easy maintenance.
  16. All rotary cap feeders have stainless steel and FDA approved materials for all contact parts.
  17. Air filter-regulator for feeder.
  18. Stainless steel machine leveling screws with floor pads.
  19. No bottle/no cap release from chute.
  20. All parts modularized for quick replacement.
  21. All stainless steel bolts and fasteners throughout.
  22. Interlocking safety switches on Lexan guarding enclosure so machine will not run unless doors are closed



Options:

THE MODEL “C8” CAPPER CAN BE EQUIPPED WITH THE FOLLOWING OPTIONAL FEATURES:

  1. 36” Rotary Cap Feeder
  2. Stainless steel frame and cabinet
  3. All visible painted surfaces above conveyor to be either nickel or chrome plated
  4. Motorized Capper head height adjustment
  5. EM-980 Electronic Torque sensor
  6. Mini-L stainless steel low profile hopper/elevator
  7. Bulk elevator
  8. Stainless steel Bulk Elevator
  9. Conveyor extensions
  10. (IQ-OQ) Complete installation and operational qualification protocol documentation



Ideal For:

- Caps of all materials from 8mm-70mm.

- Vials up to 2-1/2 gallon containers

- Speeds up to 400 bottles/minute



Air-Electrical:

-220V, 3Ph 50/60Hz (NEMA 12)

- Air 2 to 4 cubic ft/min



Size:

- Base Machine Dimension: 38”

- Crated Dimension: 8' L x 4' W x 6' 8" H

- Crated Weight  1300lbs
