Model LF-40
Combination Wrap / Panel Labeler. Speeds Up To 40 Meters of labels per minute (up to 175bpm)*
LABEL-VANTAGE
Automatic Combination Wrap and Panel Product Labeling System

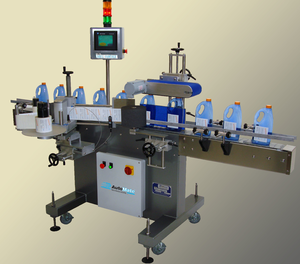

Model LF-40 is a Pressure Sensitive Panel Labeler for Round, Flat Sided and Oval Bottles. Labeling Speeds of up to 40meters/ 1,500inches per minute. The labeling applicator adjusts on 5 axes. European design. User friendly controls and a large color touch screen make changeovers easy and quick.
The Model LF-40 comes complete with the following standard features (See bulletin #A1008):
- European designed field proven label applicators:
- Variable speed servo drive motor.
- Standard label reel diameter up to 300mm/12” with 76mm/3” core diameter.
- Can accept a web width of up to 4.5” – Larger Available.
- Labeling speed: Up to 40 meters per minute/1,500 in. per minute with independently driven reel holder.
- Proprietary full 5 axis adjustment of applicator head.
- Unwind unit gives constant web tension.
- Dual label press wheels for front and back straight sided bottles.
- Heavy Duty Design:
- One piece welded uni-frame (Patented Design) for 24-hour/7-Day operation.
- Portable epoxy coated steel compact base frame with stainless steel leveling screws with floor pads.
- Oversize stainless steel shafting with calibrated settings throughout.
- 9’ 8” long synchronized variable speed conveyor with Stainless Steel infeed and discharge conveyor sections (Longer lengths and custom layouts available).
- Controls:
- Clearly laid out operating display for safe and easy use.
- Color TFT touch screen control system with rotating support for front and rear operation.
- Label counter down with operator alerts (precisely counts the number of labels dispensed by applicator).

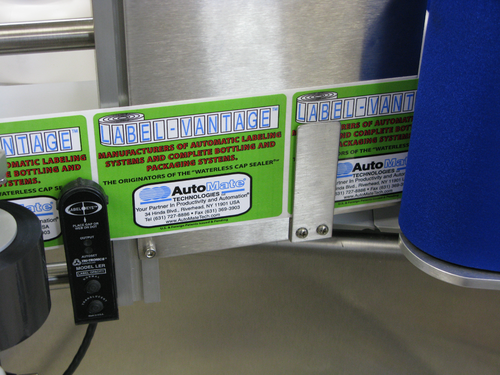

- Photo-electric non-contact label and bottle detectors.
- Menu driven microprocessor control with over 250 alpha-numeric recipe capacity.
Ideal For:
• Flat Sided and Oval Container Labeling
High Speed Applications
Air-Electrical:
110V, 1 Phase, 50/60 Hertz (Nema 12). No air needed on standard machine (unless coders/rejectors, etc. are used) (Approximately 6.0 amps).
Size:
- Crated Machine Weight: 1500lbs
- Dimension: 9’x6’x6’8”
