FSRF-24 Parts and Cap Feeder

Rotary Feeders / Elevators / Hoppers

  • FSRF-24 Parts and Cap Feeder (Rotary Feeders / Elevators / Hoppers)

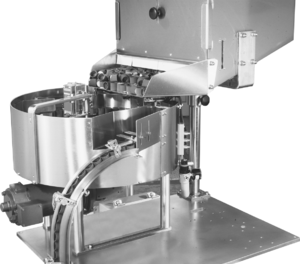

Kaps-All Packaging Systems - FSRF-24 Parts and Cap Feeder

Welcome to our presentation of the Model FSRF-24 Parts and Cap Feeder, an exemplary product in the Kaps-All Packaging Systems line. Our Automatic Rotary Parts and Cap Feeder are designed to ensure an efficient and reliable packaging operation.

Unmatched Versatility with FSRF-24

The Model FSRF-24 is an embodiment of flexibility. This feeder is adept at orienting a broad range of cap sizes and types, as well as accommodating small jars, containers, and various parts. The system's patented mechanism provides a smooth and gentle operation, thereby ensuring a careful handling of your products.

One striking feature of this model is the use of a minimal amount of air to assist in orientation, which results in high efficiency and precise control. Our feeder is designed to orient parts in an open side up position, ensuring a uniform and systematic flow of components.

Advanced and User-friendly Features

Our FSRF-24 is designed with a quiet operation to create a comfortable working environment. No change parts are needed, eliminating the need for skilled personnel and mitigating costly downtime. In addition, this model comes with a DC motor equipped with speed controls, offering a range of speeds from 10 to 800 parts per minute, making it adaptable to a variety of production demands.

Constructed from stainless steel, the Model FSRF-24 is ideal for pharmaceutical and food applications. Its compact size and high speed output are perfect for operations requiring high throughput without sacrificing space. It is also compatible with other KAPS-ALL cappers, making it a versatile addition to your production line.

Broad Capabilities and Long-Lasting Performance

Model FSRF-24 is capable of handling standard, tall, child safety, pilfer evident and snap caps; both metal and plastic. It can cater to items from 8mm up to 120mm in diameter. Minimum adjustments are required for orientation of unusually shaped caps or parts, making it a reliable and efficient solution for your packaging needs.

This model stands out with its guarantee for 2 full years--the longest in the industry. Plus, it offers a range of optional add-ons, including mobile floor stands, parts counters, stainless steel supply hoppers, stainless steel chutes and bulk parts elevators, allowing you to customize the feeder to your specific requirements.

Ideal for Pharmaceutical and Food Packaging Operations

The FSRF-24 is a boon for pharmaceutical and food packaging operations, where precision and hygiene are paramount. It is also excellent at orienting and feeding of small to medium sized caps and parts.

Air-Electrical Specifications and Size

The FSRF-24 operates at either 110v AC, 1Phase, 50/60 hertz or 220v AC, 1 phase, 50/60 hertz, with an air requirement of 2-4 CFM at 80 PSI. Despite its powerful performance, it maintains a compact form with shipping measurements of 4'x4'x3' and a crated machine weight of 350lbs.

In conclusion, the Model FSRF-24 Parts and Cap Feeder offers a combination of versatility, efficiency, and durability, making it an ideal choice for a wide range of applications. Explore this outstanding product and make it a valuable addition to your packaging line.

Rotary Feeder Features:

  • Model FSRF-24 and Model FSRF-36.
  • No change parts required for standard caps and similar parts.
  • Handles caps and parts from 8mm up to 120mm in diameter.
  • Can orient jars and small containers.
  • Quiet and gentle (non-vibratory).
  • Stainless steel construction--ideal for pharmaceutical and food applications.
  • One model cap feeder can handle standard, tall, child safety, pilfer evident and snap caps; both metal and plastic.
  • Electronically controlled variable speed drive.
  • Speeds from 10 to 800 parts per minute.*
  • Compact size with high speed output.
  • Minimum adjustments required for orientation of unusually shaped caps or parts.
  • No skilled personnel required for fast changeovers. Eliminates costly downtime.
  • Optional mobile floor stands, parts counters, stainless steel supply hoppers, stainless steel chutes and bulk parts elevators available.
  • Guaranteed for 2 full years--the longest in the industry.
  • Easily adaptable to KAPS-ALL® cappers.
  • No belts or drive chains needed.
  • Simple tooling available for unusual cap stylings and parts such as; tall spouts, snip tops, push-pull caps, etc.
  • Precise dribble feeding from hopper not required, feeder is not load sensitive.
  • Supplies caps/parts on demand only.

Ideal For:

•Ideal for pharmaceutical and food packaging operations

Ideal For: Orienting and feeding of small to medium sized caps and parts



Air-Electrical:

110v AC, 1Phase, 50/60 hertz

Or

220v AC, 1 phase, 50/60 hertz



2-4 CFM at 80 PSI



Size:

- Crated Machine Weight: 350lbs

- Shipping Measurements:  Crated 4’x4’x3’
