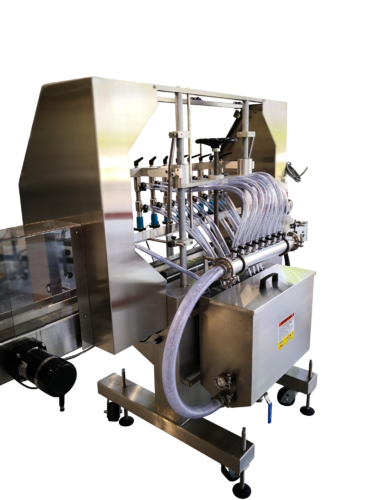

Introducing the FA-P-E Pressure Filler

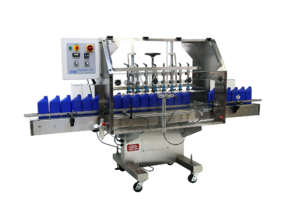

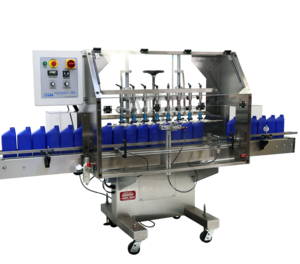

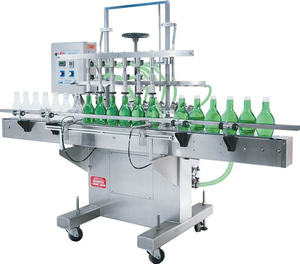

The FA-P-E Pressure Filler is an exceptional fully automatic, microprocessor-controlled, straight line liquid filling machine from Kaps-All Packaging Systems' Fills-All range. Equipped to handle all free flowing liquids, this machine excels at managing foaming and slightly viscous products. Whether the containers are made of glass, plastic, or metal, the FA-P-E Pressure Filler is designed to accommodate them all. Its ready stock availability ensures fast delivery and prompt integration into your production line.

Key Features

Our Model FA-P Pressure Filler is loaded with industry-leading features, all included as standard.

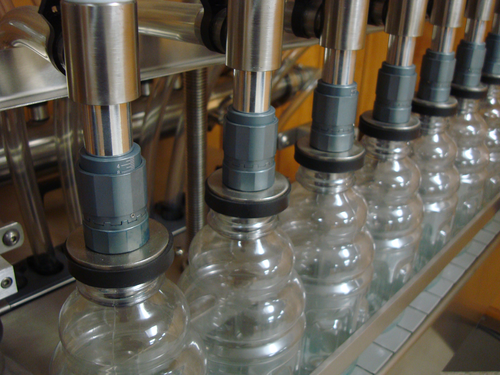

  1. Expandable Nozzle System: Comes with two stainless steel gravity/pressure nozzles adjustable for varying fill heights. The system can be expanded to accommodate up to 18 nozzles.

  2. Versatile Bottle Range: Accommodates a wide variety of container sizes, from 1-3/4 inch high to 1 gallon containers.

  3. Broad Container Compatibility: Capable of filling glass, plastic, or metal containers.

  4. All-inclusive Liquid Handling: Efficiently manages all free-flowing liquids and performs exceptionally well with foaming products.

  5. Sanitary Design: Includes a pressure gauge on manifold and FDA approved tubing for all nozzles.

  6. Robust Construction: Comes with a standard one-piece welded stainless steel construction cabinet, ensuring longevity and durability.

Additionally, the FA-P Pressure Filler is portable, easy to adjust, and integrates safety features such as 'No bottle-no fill' monitor. It also comes with a Nema 4 (wash down) control panel, pneumatic stainless steel cylinder bottle gating system, and fill bottle counter. This machine requires minimal conveyor space, making it a compact and efficient solution for your packaging needs.

Optional Extras

While our FA-P Pressure Filler comes fully equipped as standard, we offer a range of optional extras for enhanced performance and convenience. These include extra stainless steel nozzle heads, stainless steel conveyor bed, double diaphragm polypropylene, stainless steel drip pan, bottle neck clamping system, and stainless steel ball valve for supply tank.

Perfect for All Liquid Filling Applications

The FA-P-E Pressure Filler is ideally suited for all liquid filling applications, especially those involving thin to slightly viscious foaming products. It guarantees accuracy, repeatability, and ease of use with minimal changeover parts. These state-of-the-art components deliver maximum performance, reliability, and versatility to keep up with your production requirements. Fills-All fillers can operate separately or be integrated into a complete packaging system.

Technical Specifications

  • Electrical: 110V, 1 Phase, 60 Cycle
  • Air: 1-2 cu/ft per min. 90psi.
  • Weight (Base Crated): 850 lbs
  • Crated Dimension: 8’x4’x6’8” W

Choose the FA-P-E Pressure Filler for a reliable, efficient, and highly adaptable filling solution. Boost your production performance with Kaps-All Packaging Systems today.

Features:

The Model FA-P Pressure Filler comes equipped with the following standard features at no charge.

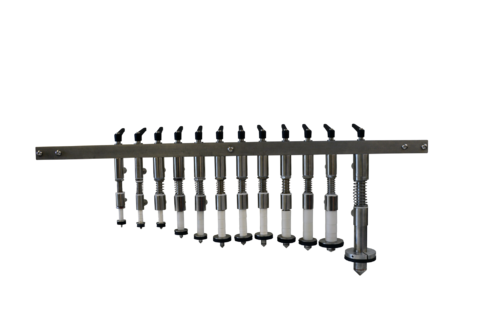

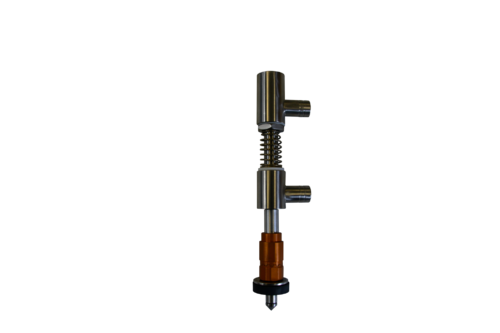

1. Two stainless steel gravity/pressure nozzles adjustable for varying fill heights (expandable to 18 nozzles)

2. Accommodates a bottle range of 1-3/4 inch high to 1 gallon containers

3. Handles glass, plastic or metal containers

4. Handles all free flowing liquids (excellent with foaming products)

5. Pressure gauge on manifold (sanitary design)

6. Flexible FDA approved tubing provided for all nozzles

7.  Standard one piece welded stainless steel construction cabinet

8.   Mounting facilities for optional conveyor or can overhang existing conveyor

9.   No bottle-no fill safety monitor

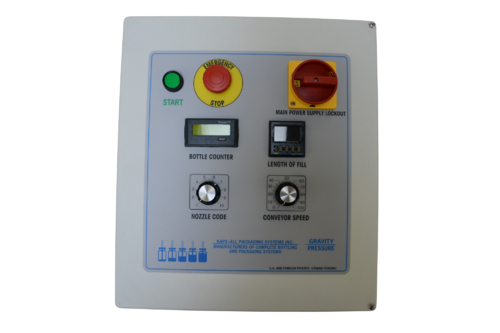

10. Nema 4 (wash down) control panel

11. Totally adjustable pneumatic, stainless steel cylinder bottle gating system

12. Portable on four heavy-duty casters

13. Master control wheel permitting height adjustment of all nozzles by a single turn assuring fast, repeatable settings between changeovers

14. Left to right conveyor travel is standard.  For right to left travel, please indicate on your purchase order

15. Standard wiring-110V, 1 Phase, 60 Hz, utilizing approximately 1-3 CFM of air (more with diaphragm pumps)

16. Fill bottle counter to keep count of the number of bottle being filled in any given run

17. Nozzle rack, height adjustable screw, to be stainless steel

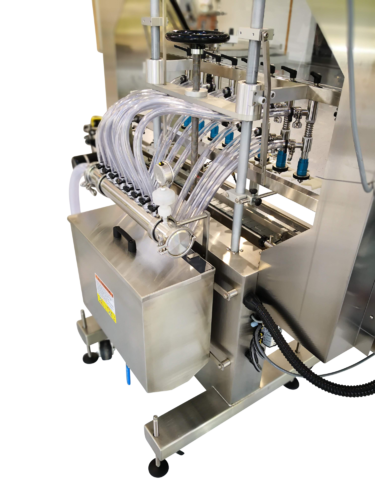

18. Stainless steel two port pressure manifold sanitary design and 20 gallon stainless steel supply/overflow tank

19. Two full year guarantee on all parts, less tubing, seals and gaskets (electronics are covered under manufacturers guarantee)

20. Air filter/regulator and air supply switch

21. Micro processor controlled for ease of use

22. Requires minimal conveyor space 44 inch or 59 inch with control box

Options:

  1. Extra stainless steel nozzle heads (up to 24 heads at one time) (if needed) each
  2. 7 1/2’ stainless steel conveyor bed complete with electronic variable speed drive, Delrin table top chain with stainless steel pins, stainless steel guide rails, stainless steel cover overdrive, etc
  3. Approximately 37 gallons per minute air driven, double diaphragm polypropylene complete with Teflon valves and seals, regulator, control valves, pressure gauge, oiler and an on-off switch. For shipping purposes, the machine must be bolted to a heavy duty wooden skid for stability during transportation.   When the machine is shipped on a common carrier, the machine must be fully crated, the cost for the standard 4’ wide x 8’ long x 6’7” high totally enclosed wooden crate including the heavy duty skid is
  4. Stainless steel cabinet one piece welded construction with stainless steel table plate and stainless steel cabinet covers
  5. Stainless steel conveyor table top chain to replace Delrin chain (if needed)
  6. Stainless steel eight port manifold (for a total of eight nozzles), extra
  7. Stainless steel drip pan (automatic) for collecting drippings from nozzles (needed) extra
  8. Lower tank stainless steel cover, extra

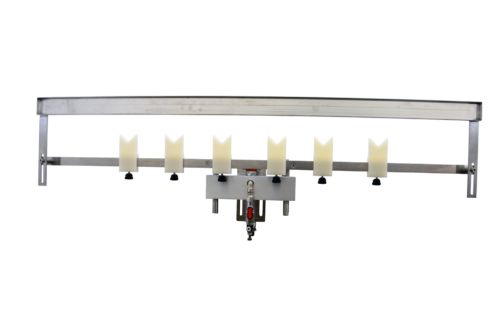

  9. Bottle neck clamping system (pneumatic-horizontal) for up to four nozzles
  10. Bottle neck clamping system (pneumatic-horizontal) for up to twelve nozzles
  11. Conveyor extensions (per foot) (specify intake or discharge) stainless steel construction includes frame, wear strips, chain, conveyor rail posts, and rails per foot:
  • For conveyor extension lengths up to 3 feet long, per foot
  • For lengths longer than three feet (per foot)
  1. Stainless steel conveyor extension pedestal (complete with stainless steel leveling screws with floor pads)
  2. Stainless steel ball valve for supply tank



Ideal For:

All liquid filling applications.  Excellent with thin to slightly viscous foaming products.

The fillers offer accuracy, repeatability and ease of use with little or no changeover parts State-of-the-art components offer maximum performance, reliability and versatility to keep pace with your production requirements. FILLS-ALL fillers can operate separately or can be integrated into a complete packaging system.



Air-Electrical:

-110V, 1 Phase, 60 Cycle

- Air: 1-2 cu/ft per min.  90psi.



Size:

- Base Crated Weight: 850 lbs

- Crated Dimension: 8’x4’x6’8” W
