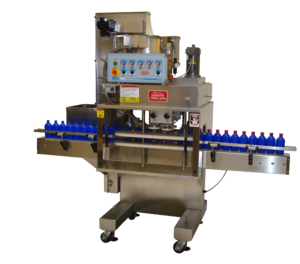

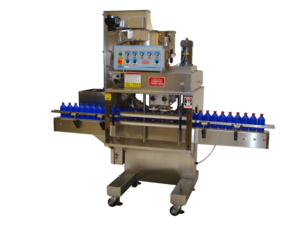

E4 Portable 4 Spindle Capper

Cappers, and Capping Machines

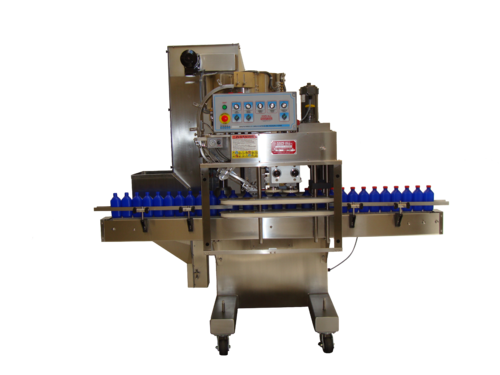

  • E4 Portable 4 Spindle Capper (Cappers)

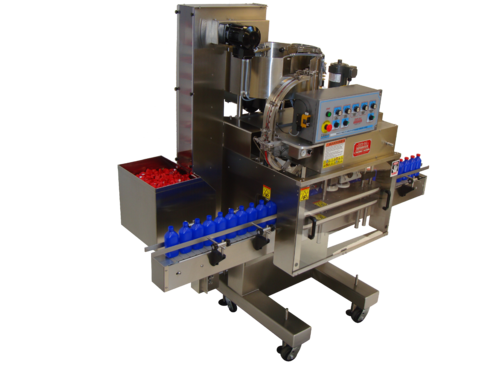

  • E4 Portable 4 Spindle Capper (Cappers)

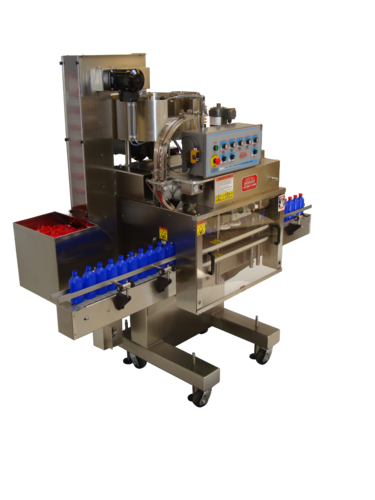

  • E4 Portable 4 Spindle Capper (Cappers)

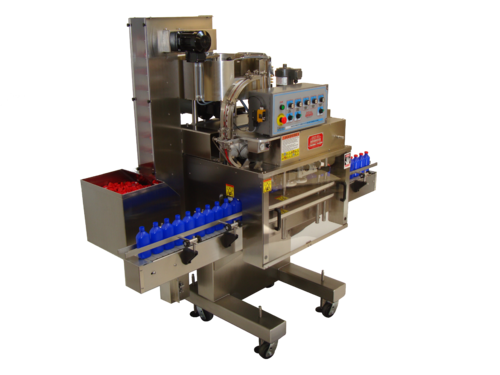

  • E4 Portable 4 Spindle Capper (Cappers)

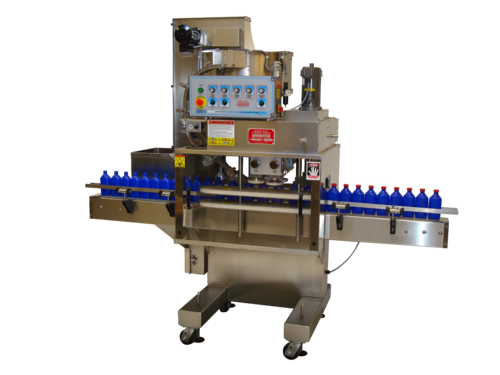

  • E4 Portable 4 Spindle Capper (Cappers)

E4 Portable 4 Spindle Capper: The Apex of Efficiency and Versatility

Presenting the Model E4-Portable 4 Spindle Capper, a revelation in fully automatic capping technology that brings high speed, precision, and adaptability to your production line. With an impressive capability of managing up to 80 bottles per minute (BPM), this machine transforms your packaging process into a streamlined, efficient operation.

This compact powerhouse, occupying just 33 1/2" of line space, is the embodiment of versatility. The E4 Capper seamlessly accommodates screw caps of all materials, styles, and sizes ranging from 13mm to 70mm. This includes pilfer evident and child-resistant cap closures. It is an ideal choice for handling metal, glass, or plastic containers, from low jars and vials to sizable 2-1/2 gallon containers.

Notably, the E4 Portable 4 Spindle Capper has a flexible design that enables easy conversion to a combination capper, mirroring the capabilities of the Model G. Its portability ensures it can be effortlessly moved between production lines, making it a pragmatic choice for businesses that value flexibility and adaptability.

Innovative Features for an Enhanced Packaging Experience

The E4 Capper comes with a collection of industry-leading features that enhance its performance. The capper boasts a two full-year guarantee on all parts, ensuring reliability and longevity. It features a stainless steel 7’6” conveyor frame with DC variable speed drive, a patented design that eliminates the need for changeover parts for a wide range of standard caps and containers, and calibrated settings for ease and repeatability of changeover.

Other remarkable features include an all-stainless-steel construction for durability and hygiene, all electronically controlled variable speed drives for precision and ease of adjustment, and patented multiple disc adjustable torque clutches for consistent torque application.

Customization Options for Tailored Solutions

Understanding that every packaging operation has unique requirements, the Model E4 Capper offers a range of optional features. These include a stainless steel frame and cabinet, motorized capper head height adjustment, and an electronic torque sensor among others. With these customization options, the E4 Portable 4 Spindle Capper can be precisely tailored to suit your operational needs.

Perfect For Your Range of Products

From caps of all materials from 8mm-70mm, vials up to 2-1/2 gallon containers, and speeds up to 80 bottles/minute, the E4 Portable 4 Spindle Capper is perfectly suited to a wide variety of packaging needs.

Air-Electrical and Size Specifications

The E4 Capper requires 110V 1Ph 50/60Hz (NEMA 12) for operation and uses 2 to 4 cubic ft/min of air. It showcases a compact base machine dimension of 32" and arrives in a crate of dimensions 8' L x 4' W x 6' 8" H, with a total crated weight of 1300lbs.

In summary, the E4 Portable 4 Spindle Capper is a combination of speed, efficiency, versatility, and durability, designed to meet your most challenging packaging requirements. Leverage its advanced features to take your production line to the next level.

Features:

THE MODEL “E4” CAPPER COMES EQUIPPED WITH THE FOLLOWING STANDARD FEATURES AT NO CHARGE:

  1. Two full-year guarantee on all parts.
  2. Stainless steel 7’6” conveyor frame DC variable speed drive with a 4 1/2” wide Delrin chain with stainless steel pins, stainless steel drive and idler shafts with reinforced nylon conveyor rail posts, stainless steel conveyor end guards and non-corrosive drive and idler conveyor top chain sprocket.(left to right travel standard)  Note: (Machine also can be purchased without conveyor).
  3. Stainless steel enclosure with Lexan doors on front and back enclosing spindle and gripper section down to conveyor.
  4. Patented design eliminates need for changeover parts for a wide range of standard caps, container shapes and sizes.
  5. Patented stainless steel adjustable upper and lower cap chutes to handle from 13mm to 70mm standard flat CT caps.
  6. Calibrated settings allow for ease and repeatability of changeover.
  7. Stainless steel 3.5 cubic foot upright cap supply hopper (pre-feeder).
  8. Stainless steel guarding of upper drive section.
  9. One pair of stainless steel bottle gripper belt housings complete with belts and drives.
  10. All stainless steel bottle gripper belt and spindle shafting.
  11. Heavy duty patented multiple disc adjustable torque clutches which give a consistent torque and minimize wear on cap tightening discs (one pair).
  12. All electronically controlled variable speed drives for ease of adjustment.
  13. All Nema 12 electrical components.
  14. Portable on four swivel wheels for easy maneuvering.
  15. Mounting facilities for using a second set of bottle gripper belts.
  16. One piece solid welded construction cabinet epoxy painted for both cleanliness and easy maintenance.
  17. All rotary cap feeders have stainless steel and FDA approved materials for all contact parts.
  18. Air filter-regulator for feeder.
  19. Stainless steel machine leveling screws with floor pads.
  20. No bottle/no cap release from chute.
  21. All parts modularized for quick replacement.  Little to no tools required.
  22. All stainless steel bolts and fasteners throughout.
  23. Interlocking safety switches on Lexan guarding enclosure so machine will not run unless doors are closed



Options:

THE MODEL “E4” CAPPER CAN BE EQUIPPED WITH THE FOLLOWING OPTIONAL FEATURES:

  1. Stainless steel frame and cabinet
  2. All visible painted surfaces above conveyor to be either nickel or chrome plated
  3. Motorized Capper head height adjustment
  4. EM-980 Electronic Torque sensor
  5. Mini-L stainless steel low profile hopper/elevator
  6. Stainless steel Bulk Elevator
  7. Conveyor extensions
  8. (IQ-OQ) Complete installation and operational qualification protocol documentation



Ideal For:

- Caps of all materials from 8mm-70mm.

- Vials up to 2-1/2 gallon containers

- Speeds up to 80 bottles/minute



Air-Electrical:

-110V 1Ph 50/60Hz (NEMA 12)

- Air 2 to 4 cubic ft/min



Size:

- Base Machine Dimension: 32”

- Crated Dimension: 8' L x 4' W x 6' 8" H

- Crated Weight  1300lbs
